Using the registers window

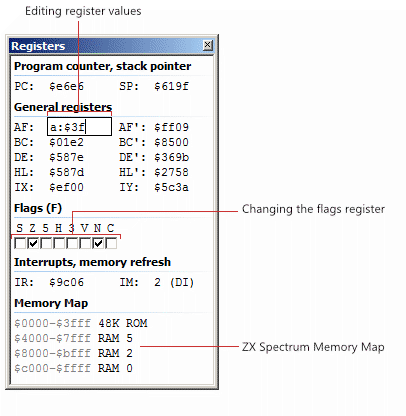

The registers window is used to view the current values of the Z80's register banks. You can also change register values (single register and register pairs).

During program tracing, the registers that have changed since the last breakpoint (or instruction if single-stepping) are drawn in red.
